No.M94220 - 20 Piece 1/2" Drive Multi-Lock Socket Set - M94220
SKU:M94220
RRP $235.18
$149.66
SAVE $85.52 (36%)
Not Available In Store
Calculate Shipping
Multi lock sockets are a new patented design that fit six different fastener configurations: Square, Torx-r, 6 Point, 12 Point, SAE & Metric, Spline and Ribe.

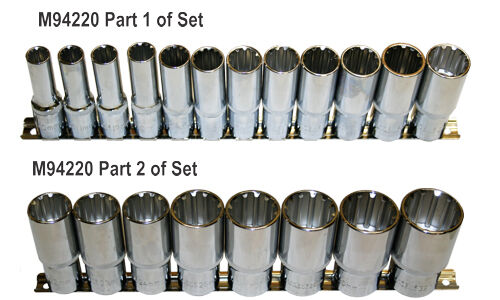

Set Contains (Supplied on socket rail):
10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 21mm, 22mm, 23mm, 24mm, 26mm, 27mm, 28mm 30mm, 32mm Multi-Lock Sockets 1/2" Drive.
Multi-Lock Sockets (Available Separately): | |||
| Item No. | Size | Drive | Length |
|---|---|---|---|
| M5410 | 10mm | 1/2" Square | 37mm |
| M5411 | 11mm | 1/2" Square | 37mm |
| M5412 | 12mm | 1/2" Square | 37mm |
| M5413 | 13mm | 1/2" Square | 37mm |
| M5414 | 14mm | 1/2" Square | 37mm |
| M5415 | 15mm | 1/2" Square | 37mm |
| M5416 | 16mm | 1/2" Square | 37mm |
| M5417 | 17mm | 1/2" Square | 37mm |
| M5418 | 18mm | 1/2" Square | 37mm |
| M5419 | 19mm | 1/2" Square | 37mm |
| M5420 | 20mm | 1/2" Square | 37mm |
| M5421 | 21mm | 1/2" Square | 37mm |
| M5422 | 22mm | 1/2" Square | 37mm |
| M5423 | 23mm | 1/2" Square | 39mm |
| M5424 | 24mm | 1/2" Square | 39mm |
| M5426 | 26mm | 1/2" Square | 41mm |
| M5427 | 27mm | 1/2" Square | 41mm |
| M5428 | 28mm | 1/2" Square | 41mm |
| M5430 | 30mm | 1/2" Square | 44mm |
| M5432 | 32mm | 1/2" Square | 44mm |
Sizes That Multi-lock Sockets Fit For All The Different Configurations: | ||||||
| MM (12 Point) | SAE (6 Point) | Torx (Star) | Spline | Square | WW (12 Point) | E-Torx (Female) (Star) |
|---|---|---|---|---|---|---|
| 10mm | - | T55 | - | - | - | - |
| 11mm | 7/16" | T60 | M14 | 3/8" | 3/16" | E16 |
| 12mm | - | - | - | - | - | - |
| 13mm | 1/2" | T70 | M16 | 7/16" | 1/4" | E18 |
| 14mm | 9/16" | - | M18 | - | - | - |
| 15mm | - | T80 | - | 1/2" | 5/16" | E20 |
| 16mm | 5/8" | - | - | - | - | - |
| 17mm | - | T90 | - | - | - | E22 |
| 18mm | - | - | - | 5/8" | 3/8" | - |
| 19mm | 3/4" | T100 | - | - | - | E24 |
| 20mm | - | - | - | - | - | - |
| 21mm | - | - | - | - | 7/16" | - |
| 22mm | 7/8" | - | - | 3/4" | - | - |
| 23mm | - | - | - | - | - | - |
| 24mm | 15/16" | - | - | - | 1/2" | - |
| 26mm | - | - | - | - | 9/16" | - |
| 27mm | 1.1/16" | - | - | - | - | - |
| 28mm | - | - | - | - | 5/8" | - |
| 30mm | 1.3/16" | - | - | 1" | 11/16" | - |
| 32mm | 1.1/4" | - | - | - | - | - |
(M94220)
| SKU | M94220 |
| Barcode # | 9310135716203 |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.300m |
