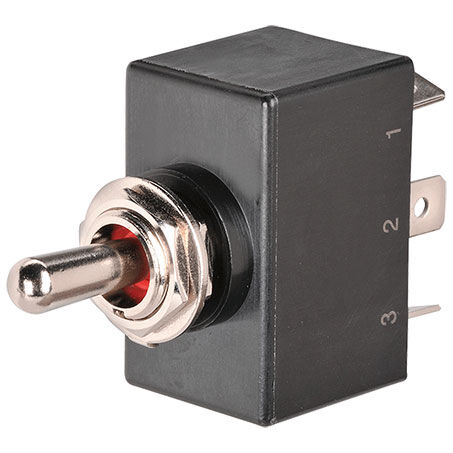

Narva Waterproof Heavy Duty Toggle Switch Momentary On/Off/Momentary On DPDT (Contacts Rated 25A 12V) BL Pk 1
SKU:60295BL
RRP $128.65
$90.20
SAVE $38.45 (30%)
Not Available In Store
Calculate Shipping
Type:SWITCH
Brand:NARVA
Unit of Measure:EACH
Description:Narva Waterproof Heavy Duty Toggle Switch Momentary On/Off/Momentary On DPDT (Contacts Rated 25A 12V)
Warranty:One Year
Number of Terminals: 6
Power Rating (Amp): 25A 12V
Switch Action: Mom On - Off - Mom On - DPDT
Voltage: 12 or 24
Number of Poles: 2
Number of Positions: 3
Switch Type:Toggle
Weight: .001kg
Switch Illumination:Non Illuminated
Features:
DPDT
Push on terminals
Amperage rating 25A at 12V, 15A at 24V
-40C to +85C
Fully sealed with epoxy resin (IP67)
Integrated O-Ring seal
Comprises: Fully sealed with epoxy resin (IP67),Integrated O-Ring seal
Mounting opening 12mm diameter
Brand:NARVA
Unit of Measure:EACH
Description:Narva Waterproof Heavy Duty Toggle Switch Momentary On/Off/Momentary On DPDT (Contacts Rated 25A 12V)
Warranty:One Year
Number of Terminals: 6
Power Rating (Amp): 25A 12V
Switch Action: Mom On - Off - Mom On - DPDT
Voltage: 12 or 24
Number of Poles: 2
Number of Positions: 3
Switch Type:Toggle
Weight: .001kg
Switch Illumination:Non Illuminated
Features:
DPDT
Push on terminals
Amperage rating 25A at 12V, 15A at 24V
-40C to +85C
Fully sealed with epoxy resin (IP67)
Integrated O-Ring seal
Comprises: Fully sealed with epoxy resin (IP67),Integrated O-Ring seal
Mounting opening 12mm diameter
(60295BL)
| SKU | 60295BL |
| Barcode # | 9310754793280 |
| Brand | NARVA |
| Shipping Weight | 0.0400kg |
| Shipping Width | 50.000m |
| Shipping Height | 50.000m |
| Shipping Length | 100.000m |
