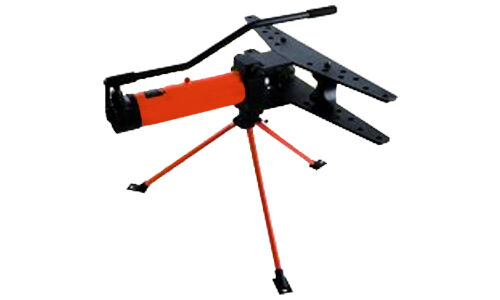

Pipe bending jobs can be done without physical effort due to high 9 ton force of the hydraulic power unit. "V" Shape frames show the 90° angle reference to reduce hydraulic stroke and save bending time.
The unit is fitted with retractable bending frames that are identically marked to facilitate easier positioning of the bending supports and pipe. Unit has safety overload, hydraulic stroke limitation and spring return piston. Supplied in wooden case & includes the tripod stand.
Maximum bending angle: 90°
Maximum pipe wall thickness: 5.08mm
Load Capacity: 9 Ton
Weight: 115Lb (52.2kg)
Six pipe formers are included:
Sizes
TL3802-12
TL3802-34
TL3802-1
TL3802-114
TL3802-112
TL3802-2
1/2"
3/4"
1"
1.1/4"
1.1/2"
2"
(TL3802)
SKU
TL3802
Barcode #
9310754741526
Brand
T&E
Shipping Weight
10.0000kg
Shipping Width
0.500m
Shipping Height
0.500m
Shipping Length
0.500m
