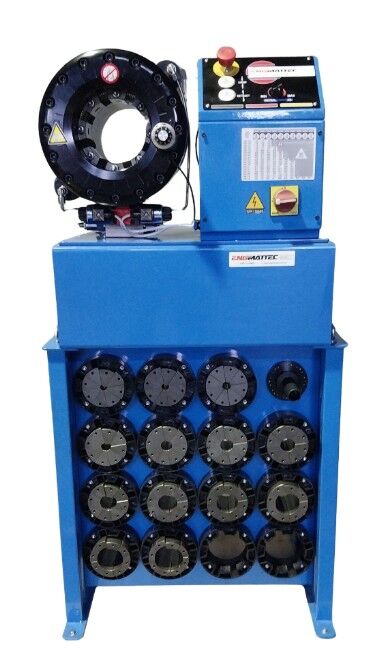

P32 2" Hydraulic Hose Crimper, 14-75mm Automatic Foot Pedal 13 Dies - HYD-P32NMS1PH

FEATURES:
Crimps from 14 to 73 mm (with Standard 13 die sets)
Full automatic control with foot pedal
Quick change tool and die rack (13 die sets as standard)
Automatic built-in PLC Control Module
Voltage
Available with a 3 kW 240 Volt AC single phase motor
or a 415 Volt AC 3 Phase Motor.
or 24 Volt DC Model also available (see Options)
Energy saving features with safe operation.
TUV CE Approved
Die sets included: 14, 16, 19, 22, 26, 30, 34, 39, 45, 51, 57, 63, 69mm
Specifications:
Max Hydraulic Hose: 2 " inch 4SP
Crimping Range (mm): 14-73mm (standard 13 die sets)
Die Type: P32
Master Die Length: 80mm
Max. Opening (mm): +32mm
Motor kW: 3kW (240 V AC ingle phase)
Crimping Force kN: 2,200
Crimps Per Hour: 1,200
Noi//se Level (dBA): 65
Protection Rating: IP56
Dimensions: 680mm x 600mm x 1400mm
Gross Weight: 300 kg
Net Weight: 253 kg (not including oil)
