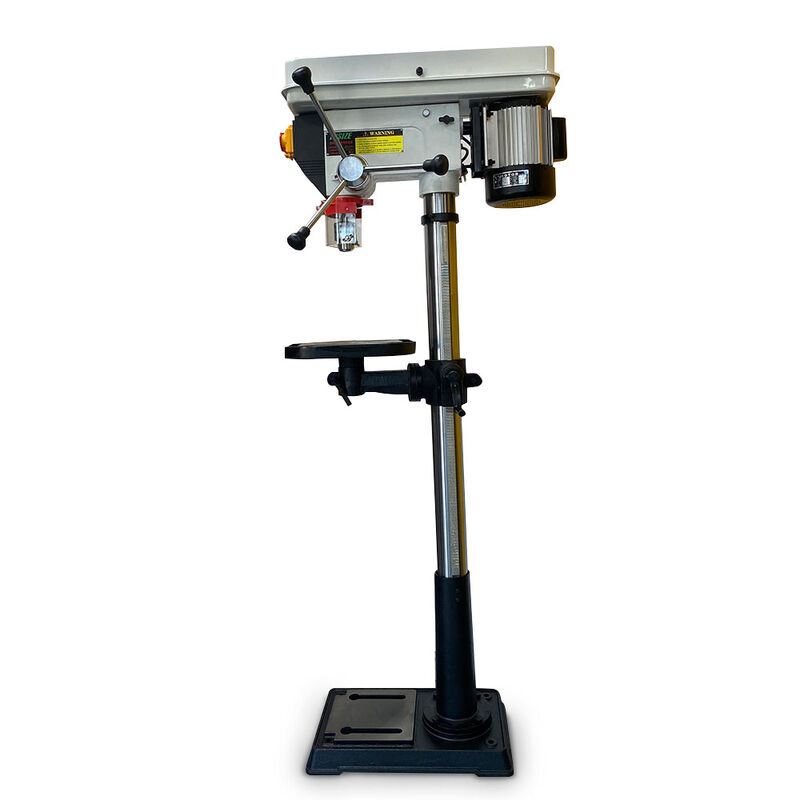

Pedestal Drill Press Machine 25mm | IN5125
SKU:IN5125
RRP $1,034.60
$852.39
SAVE $182.21 (18%)
Not Available In Store
Calculate Shipping
SPECIFICATIONS:
Type Pedestal
Motor: 750W/1HP 240v-3.6Amp
Chuck Size: 5-20mm B22
Drilling Capacity(max.): 25mm
Spindle Travel: 82mm
Spindle Taper: 3MT
Quill Diameter: 47mm
Collar Diameter: 65mm
Spindle Speed Steps: 12
Spindle Speed Range: 280-2380rpm
Swing: 360mm
Working Table: 290 x 290mm
Base Plate: 460 x 280mm
Column Diameter: 80mm
Emergency: Stop
NVR Safety Switch: Yes
Micro switch on Pulley Guard: Yes
Chuck Guard: Yes
Overall Height: 1580mm
Weight: 71/67kg
Packing Dimension(Shipping): 1150 x 500 x 300mm
Includes:
20mm keyed drill chuck and arbor
Chuck key to suit
Drill drift tool to remove drill chuck or taper shank drills
Type Pedestal
Motor: 750W/1HP 240v-3.6Amp
Chuck Size: 5-20mm B22
Drilling Capacity(max.): 25mm
Spindle Travel: 82mm
Spindle Taper: 3MT
Quill Diameter: 47mm
Collar Diameter: 65mm
Spindle Speed Steps: 12
Spindle Speed Range: 280-2380rpm
Swing: 360mm
Working Table: 290 x 290mm
Base Plate: 460 x 280mm
Column Diameter: 80mm
Emergency: Stop
NVR Safety Switch: Yes
Micro switch on Pulley Guard: Yes
Chuck Guard: Yes
Overall Height: 1580mm
Weight: 71/67kg
Packing Dimension(Shipping): 1150 x 500 x 300mm
Includes:
20mm keyed drill chuck and arbor
Chuck key to suit
Drill drift tool to remove drill chuck or taper shank drills
(IN5125)
| SKU | IN5125 |
| Barcode # | 9310754888061 |
| Brand | Insize |
| Shipping Weight | 71.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.500m |
| Shipping Length | 1.600m |
