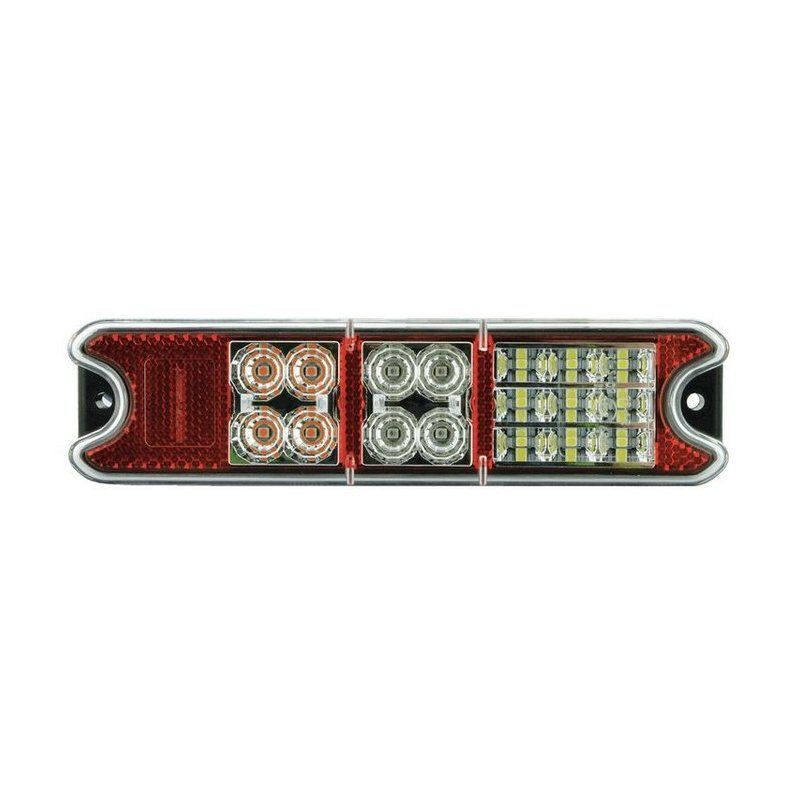

Packet 2 Led Stop/Tail/Indicator/Reverse Lamp 10-30V With Reflector Slmlne

Ignite LED Rear Combination Stop / Tail / Indicator / Reverse Lamp 10 - 30 Volt
Ideal for Forklifts
Red, Amber and White Illumination
4 x High Intensity Red SMD LED's in each Stop / Tail module, 4 x High Intensity Amber SMD LED's in each
Indicator Lamp and 9 x High Intensity White SMD LED's in the Reverse Lamp Module
Current Draw: 0.20amp at 12 Volt, 0.11amp at 24 Volt for Stop function
Current Draw: 0.03amp at 12 Volt, 0.02amp at 24 Volt for Tail function
Current Draw: 0.13amp at 12 Volt, 0.07amp at 24 Volt for Indicator function
Current Draw: 0.17amp at 12 Volt, 0.09amp at 24 Volt for Reverse function
Chrome Faceted Reflectors with Clear Polycarbonate Lens and inbuilt Retro ReflectorsvBlack ABS Plastic Housing with mounting screws included
Surface Mount, low mounting depth for easy installation
Pre-wired 300mm long 5 Wire Sheathed Lead
10,000 Hours LED Lifespan
Fully encapsulated circuitry
Reverse Polarity Protection
Sealed against Dust and Moisture
UV, Water and Shock resistant
ECE R10, CE Approved and EMC Compliant
ECE R7 and ADR 49/00 Rear Stop Lamp specifications approved
ECE R6 and ADR 6/00 2A Rear Indicator Lamp specifications approved
ECE R23 and ADR 1/00 Reverse Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
IP67 Rating
Environment Temperature: -40 degC appro. +65 degC
Blister Qty: 2
Weight: 410g
2 Year Warranty
Specifications:
Type: LED
Shape: Rectangular
Voltage: Multivolt
Mount: Surface
Width (mm): 190
Height (mm): 50
Depth (mm): 28
