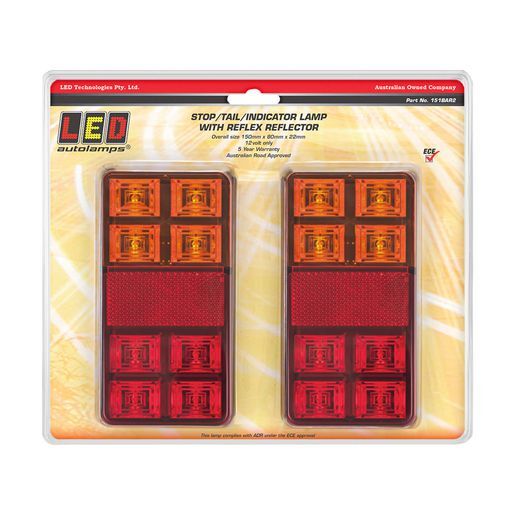

Led Stop/Tail/Indicator Lamp 12V With Reflector 25Cm Lead Twin Pack

151 Series LED Combination Stop / Tail / Indicator Lamp 12 Volt
Red and Amber Illumination
4 x High Intensity Red LED's and 4 x High Intensity Amber LED's
Red and Amber Optical Hardened Acrylic Lens with unique Square lens pattern and inbuilt Retro Reflector
Black ABS Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Pre-wired 400mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.13amps at 12 Volt Current Draw for Stop function
0.04amps at 12 Volt Current Draw for Tail function
0.12amps at 12 Volt Current Draw for Indicator function
ECE 02-R1-S1 Rear Stop Lamp specifications approved- CRN 6362
ECE 01-2a Rear Indicator Lamp specifications approved- CRN 6362
ECE E9-01-2a Reflector specifications approved- CRN 6362
Refer to ADR 13/00 for mounting instructions
Blister Qty: 2
5 Year Warranty
Spare Parts:
LP151 Licence Lamp frame
Specifications:
Type: LED
Shape: Rectangular
Voltage: 12V
Mount: Surface
Width (mm): 150
Height (mm): 80
Depth (mm): 22
