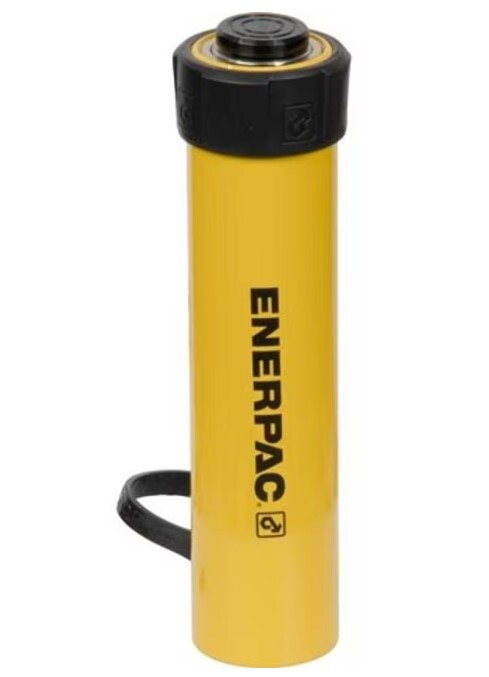

* 10T jack – 150mm stroke or nearest Enerpac RC106 (156mm stroke) - RC106

SKU:RC106

RRP $3,443.17
$2,191.09
SAVE $1,252.08 (36%)
Not Available In Store

Calculate Shipping

Maximum Operating Pressure (bar): 700
Capacity Class (tonnage): 10
Maximum Cylinder Capacity Advance (kN): 101
Stroke (mm): 156
Collapsed Height A (mm): 248
Extended Height B (mm): 404
Return Type: Single-Acting, Spring Return
Plunger Type: Solid
Material: Steel
Cylinder Effective Area Advance (cm2): 14,4
Oil Capacity Advance (cm3): 226
Surface Treatment: Paint
Coupler: CR400 Coupler
Weight (kg): 4,4

(RC106)

SKU RC106
Barcode # 9310754895878
Shipping Weight 5.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.500m
