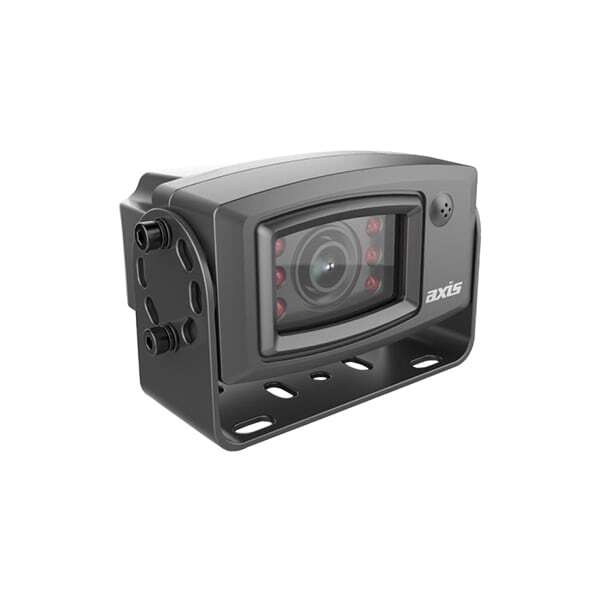

Axis CCD Reverse Camera Charcoal

The ECC80-Series 2 is a heavy duty CCD IP69K weatherproof 12V rearview camera. It connects easily with LCD monitors and features robust construction for demanding applications.
Specifications:
– Image Device: 1/3” CCD
Diagonal Viewing Angle: 120 degree
Signal System: PAL
Effective Pixels: 752H x 582V
Picture Element: 0.47MP
Sync System: Internal
Resolution: 532 TV Lines
Orientation: Mirror (Modification possible for Non-Mirror)
Night Vision: Yes, 6 IR LEDs
Illumination: 0 Lux with IR LED on
Ingress Protection: IP69K
Integrated Microphone: Yes
Operating Temp: -30 to 50 degC
Power Consumption: 100-170mA
Dimensions: 96W x 61D x 54H mm (Excluding Bracket)
Chassis: Charcoal, Diecast Aluminium
Connection: Terminated 4 Pin Male
Power Supply: 12V DC (9-14V)
INCLUDED:
Installation Manual
20m 4 Pin (Male) to 4 Pin (Female) Extension Cable
40cm Adapter Cable 4 Pin(F) to 2 RCA (Video-Yellow; Audio-White)
Mounting Bracket
Installation Hardware
2 Year Warranty
