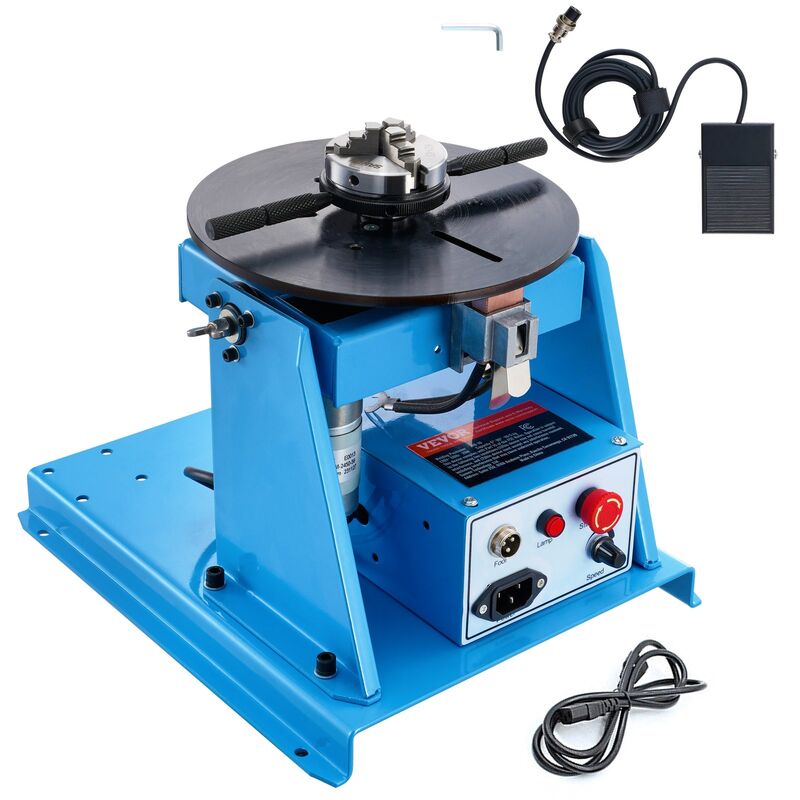

Rotary Welding Positioner 10KG, 0-90° Welding Positioning Turntable Table with 8.1 Inch 3-Jaw Lathe Chuck, 1-12 RPM 20W Portable Welder Positioning Ma
SKU:HD-10
RRP $980.05
$668.53
SAVE $311.52 (32%)
Not Available In Store
Calculate Shipping
Features & Details
Smooth Rotation: VEVOR rotary welding positioner boasts 20W high quality motor that runs at 1-12 rpm low speed for stable operation. With a load capacity of up to 11lbs/5 Kg (vertical) or 22lbs/10 Kg (horizontal), it offers excellent stability and supports efficient, precise welding.
0-90° Tiltable Worktable: Our welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the butterfly bolt. The worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece.
Precise & Stable Positioning: Equipped with a 205mm K01-63 three-jaw chuck, featuring a clamping range of 2-58mm and a supporting range of 22-50mm, it effectively prevents the weldment pieces from moving and falling, thus significantly enhancing welding accuracy.
Stepless Speed Control: The welder positioning turntable table offers 1-12 rpm stepless speed adjustment, and you can adjust the rotation speed with the speed adjustment knob. A convenient foot pedal switch also allows for easy control of table's 360 degrees rotation.
Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing. It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding. Elevate welding efficiency and precision with VEVOR!
Smooth Rotation: VEVOR rotary welding positioner boasts 20W high quality motor that runs at 1-12 rpm low speed for stable operation. With a load capacity of up to 11lbs/5 Kg (vertical) or 22lbs/10 Kg (horizontal), it offers excellent stability and supports efficient, precise welding.
0-90° Tiltable Worktable: Our welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the butterfly bolt. The worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece.
Precise & Stable Positioning: Equipped with a 205mm K01-63 three-jaw chuck, featuring a clamping range of 2-58mm and a supporting range of 22-50mm, it effectively prevents the weldment pieces from moving and falling, thus significantly enhancing welding accuracy.
Stepless Speed Control: The welder positioning turntable table offers 1-12 rpm stepless speed adjustment, and you can adjust the rotation speed with the speed adjustment knob. A convenient foot pedal switch also allows for easy control of table's 360 degrees rotation.
Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing. It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding. Elevate welding efficiency and precision with VEVOR!
(HD-10)
| SKU | HD-10 |
| Barcode # | 9310755003951 |
| Shipping Weight | 20.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.350m |
| Shipping Length | 0.400m |
