Seal O Ring Stor

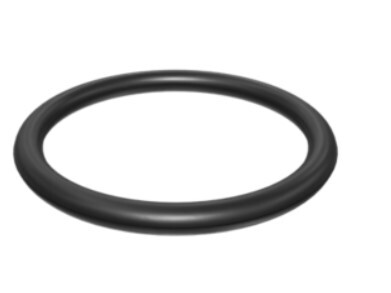

Cat Stor O-Ring Seal (SAE 1-5/16-12) (Line Group, Radiator Group)
Description:
O-Rings are used in static sealing and some dynamic applications.Cat O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in Cat engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain Cat O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.
Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression. With over 2500 O-Rings in different sizes and materials, Cat O-Rings are your best solution for your Cat and other mobile equipment O-Ring needs. Cat Sealing systems protect more expensive parts from leaks and contamination. Protect your investment with Genuine Cat Seals. O-Rings are used in many static and dynamic joints throughout Cat machines and engines.
Spec:
Applications: Ambient temperature fuel handling; High and low pressure LPG service; Hydraulic fluids (to 10,335 kPa/1,500 psi); Power steering seals; Radiator thermostat seals
Coating: PTFE coating protects the O-Ring from installation damage and provides ease of assembly.
Color: Red
Color Notes: Actual o-ring color may differ from image.
Compatible With: Abrasion resistant; Alpha-Olefin base synthetic lubricants; Ethylene Glycol; Hydrocarbon fuels; Petroleum base lubricants; Silicone oils and greases; Water, water base engine coolants; ORFS, STORS seals
Cross Section Diameter (in): 0.116
Cross Section Diameter (mm): 2.95
Dash Size (in): 916
Fitting Size (in): 1-5/16 - 12
Hardness (Shore A): 90
Inside Diameter (in): 1.171
Inside Diameter (mm): 29.74
Material: NBR - Nitrile, Nitrile (NBR), NBR (90)
Material Description: Nitrile (NBR) rubber is capable of service temperatures of -40 to 100C and is resistant to fuel oils, gasoline, ultra low sulfur diesel fuel and lubricants. Nitrile rubber is not recommended for applications that require resistance to bio-diesel or coolant.
Not Compatible With: Automotive and aircraft brake fluids; High levels of ozone; Ketones; Phosphate ester fluids; Strong acids; UV light Notes: Dimensions and material descriptions provided for reference only.
O-Ring Type: Straight Thread O-ring (STOR)
Outside Diameter (in): 1.403
Outside Diameter (mm): 35.64
Primary Sealing Material: Rubber
SAE AS568 Dash Size: -916
Seal Inside Diameter (mm): 29.74
Temperature ( degC): -40 - 100
Temperature ( degF): -40 - 212
