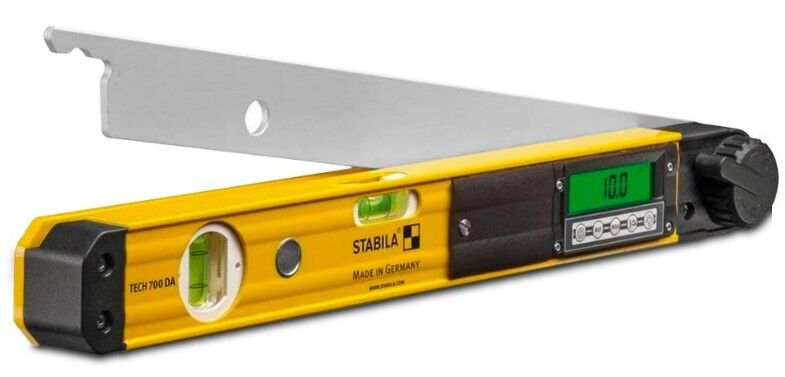

Stabila 18903 450mm (17") 2 Vial Tech 700 Digital Angle Finder - W165911
SKU:W165911
Features:
Electronic angle finder for quickly determining and transferring interior and exterior angles in the range from 0° - 270°
Digital display with large digits and lighting that can be activated and dimmed
Lock function: locking mechanism for transferring angles reliably
Vials which can be read easily, even when the arm is folded in
Two particularly wide contact edges for accurate and reliable marking of angles in all positions
Reference function: allows a reference angle to be accepted, saved and then transferred to other components
Hold function: saves the measured value - for accurate measurements and quick transferring even in hard-to-see places
Displays the angle bisectors at the touch of a button - ideal for quick and accurate mitre cuts
Switches off automatically if not used for 60 minutes
Specifications:
Accuracy In Normal Position: 0.50mm/m
Accuracy In Reverse Position: 0.75mm/m
Accuracy Electronic Angle: +/- 0.10º
Maximum Measuring Range: 270º
Number Of Measuring Surfaces: 2
Material: Aluminium
Opertaing Life: 120h
Dimensions (L x W x H): 450mm x 51mm x 52mm
Weight: 1.1kg
Electronic angle finder for quickly determining and transferring interior and exterior angles in the range from 0° - 270°
Digital display with large digits and lighting that can be activated and dimmed
Lock function: locking mechanism for transferring angles reliably
Vials which can be read easily, even when the arm is folded in
Two particularly wide contact edges for accurate and reliable marking of angles in all positions
Reference function: allows a reference angle to be accepted, saved and then transferred to other components
Hold function: saves the measured value - for accurate measurements and quick transferring even in hard-to-see places
Displays the angle bisectors at the touch of a button - ideal for quick and accurate mitre cuts
Switches off automatically if not used for 60 minutes
Specifications:
Accuracy In Normal Position: 0.50mm/m
Accuracy In Reverse Position: 0.75mm/m
Accuracy Electronic Angle: +/- 0.10º
Maximum Measuring Range: 270º
Number Of Measuring Surfaces: 2
Material: Aluminium
Opertaing Life: 120h
Dimensions (L x W x H): 450mm x 51mm x 52mm
Weight: 1.1kg
(W165911)
| SKU | W165911 |
| Barcode # | 9310755015473 |
| Shipping Weight | 1.2000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.080m |
| Shipping Length | 0.500m |
