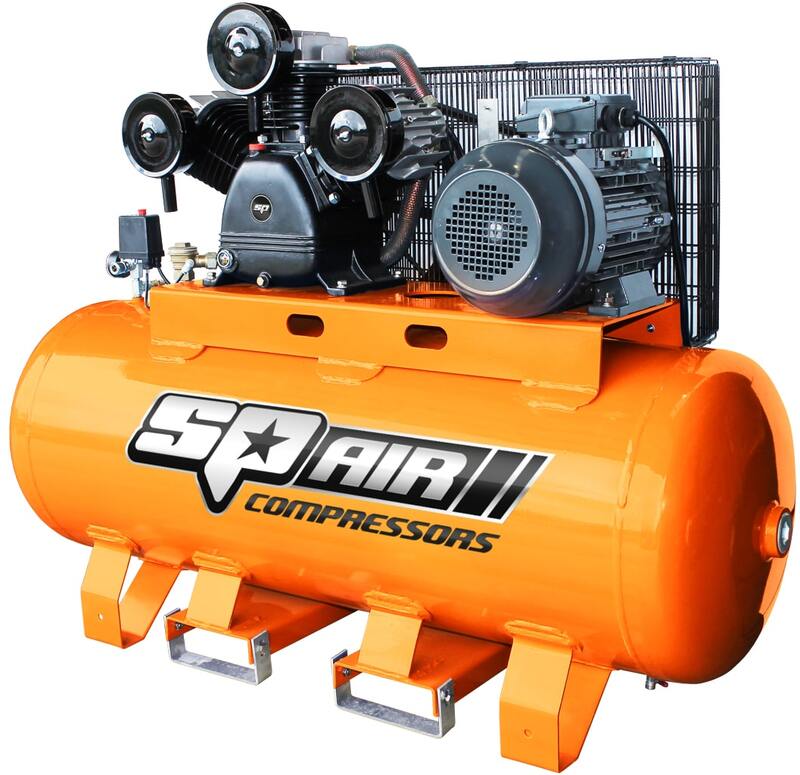

Triple Cast Electric Compressor 270L Tank 3 Phase 1085L/Min
SKU:SP50
RRP $7,543.50
$5,592.79
SAVE $1,950.71 (26%)
Not Available In Store
Calculate Shipping
SPECIFICATIONS:
Pump Size: 10Hp 3 Phase Belt Drive
Tank Size: 270L
Free Air Delivery (FAD): 1360 L/min
Max Operating Pressure: 150PSI
Voltage: 3 Phase 415Volts/50Hz 18amp per PH
Unit Weight: 254Kg
Unit Dimensions: 1630(L) x 630(W) x 1360(H)mm
Accessories Included: Filter/Regulator
One-touch (Nitto style) connector
FEATURES:
High efficiency induction motor
Full brass non-return valve
Independent 3 phase switch box operates by a single phase pressure switch
Copper delivery pipe
Certified safety valve
Large oil level sight glass
Copper wound motor
Cast iron cylinders
Resettable overload protection
Pump Size: 10Hp 3 Phase Belt Drive
Tank Size: 270L
Free Air Delivery (FAD): 1360 L/min
Max Operating Pressure: 150PSI
Voltage: 3 Phase 415Volts/50Hz 18amp per PH
Unit Weight: 254Kg
Unit Dimensions: 1630(L) x 630(W) x 1360(H)mm
Accessories Included: Filter/Regulator
One-touch (Nitto style) connector
FEATURES:
High efficiency induction motor
Full brass non-return valve
Independent 3 phase switch box operates by a single phase pressure switch
Copper delivery pipe
Certified safety valve
Large oil level sight glass
Copper wound motor
Cast iron cylinders
Resettable overload protection
(SP50)
| SKU | SP50 |
| Barcode # | 9310135718164 |
| Brand | SP Tools |
| Shipping Weight | 255.0000kg |
| Shipping Width | 1.400m |
| Shipping Height | 0.650m |
| Shipping Length | 1.630m |
