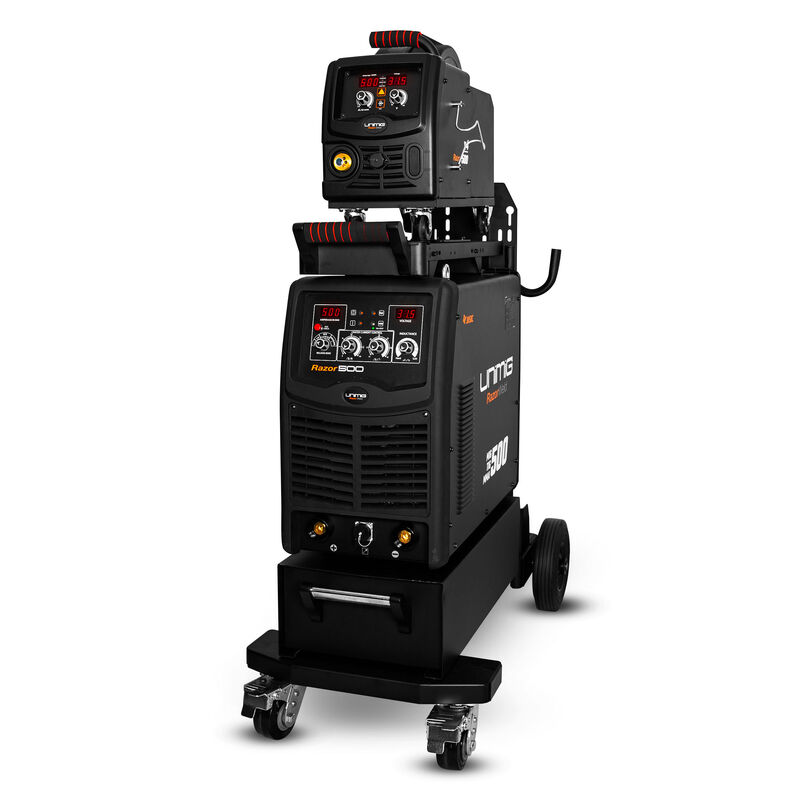

Unimig 500amp Gouging Welder Razor 500 SWF MIG/TIG/STICK

The RAZOR 500 SWF is a powerful workshop machine with MIG, TIG and STICK welding functions. This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra manoeuvrability in the workshop. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR 500 SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.
The RAZOR SWF series is designed for superior performance and manoeuvrability, offering the highest quality of welds from UNIMIG’s range.
MACHINE SPECIFICATIONS:
PRIMARY INPUT VOLTAGE: 415V Three-Phase
SUPPLY PLUG: No plug supplied (32 AMP Recommended)
RATED INPUT POWER (kVA): 25.3
Ieff (A): 24.3
RATED OUTPUT: 50A/17V - 500A/39.0V
NO LOAD VOLTAGE (V): 85
PROTECTION CLASS IP23
INSULATION CLASS: FPOWER FACTOR: 0.93
MINIMUM GENERATOR (kVA): 26.0
DINSE CONNECTOR: 35/50
STANDARD: AS/NZ60974-1
SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
WARRANTY (Years): 3
MIG SPECIFICATIONS:
MIG WELDING CURRENT RANGE: 50-500A
MIG DUTY CYCLE at 40 degC: 60 percent at 500A
MIG WIRE SIZE RANGE: 0.6-1.6mm
MIG WIRE SPOOL SIZE: 5kg / 15kg
MIG WELDING THICKNESS RANGE: 1-30mm
DRIVE ROLLER SIZE: 30/10 (x2)
TIG SPECIFICATIONS:
TIG FUNCTION TYPE: DC Lift Arc
TIG WELDING CURRENT RANGE:20-500A
TIG DUTY CYCLE at 40 degC: 60 percent at 500A
TIG WELDING THICKNESS RANGE: 2-10mm
STICK SPECIFICATIONS:
STICK WELDING CURRENT RANGE: 20-500A
STICK DUTY CYCLE at 40 degC: 60 percent at 500A
STICK ELECTRODE RANGE: 2.5-6.0mm
STICK WELDING THICKNESS RANGE: 2-20mm
SIZE and WEIGHT:
DIMENSIONS (mm): 595x280x440mm
WEIGHT (kg): 43kg
SWF DIMENSIONS (mm): 630x235x420mm
SWF WEIGHT (kg): 14kg
SWF INTERLOCKING CABLE LENGTH (m): 10m
MACHINE FEATURES:
WIRE DRIVE: Seperate 4 Geared
VRD: Yes
SPOOL GUN CONNECTION: Yes
PUSH / PULL GUN CONNECTION: Yes
BURNBACK ADJUSTMENT: Synergic
WIRE INCH: Yes
INDUCTANCE CONTROL: Yes
CRATER CURRENT CONTROL: Yes
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
AIR ARC GOUGING: Yes
