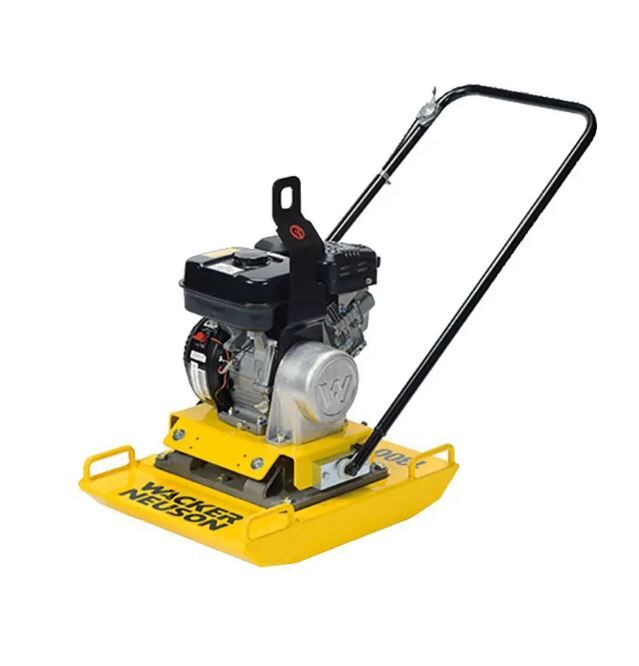

Wacker Neuson 1100 X 460 X 660Mm Diesel Plate Compactor Vpy70

Features:
Compact design with centrally mounted, for an even spread of compaction force over the whole base plate.
Sturdy 4-stroke petrol or diesel engine with recoil starter is isolated from vibration by rubber dampers.
Vibration isolated reversible handle with throttle control for ease of operation and reduced operator fatigue.
Conveniently placed lifting handles, and a central lifting point for safe and easy handling.
Low maintenance design, backed by Wacker Neuson quality, reliability and product support.
Specifications:
Operating data:
Dimensions (L x W x H):1100 x 460 x 660mm
Lowest operating height; 611mm
Operating weight: 90Kg
Centrifugal force kN: 20
Base plate size (W x L): 460 x 610mm
Advance travel (depending on soil) m/min: 28m/min
Surface capacity (depending on soil) m2/h: 770m2/h
Max. Gradeability: up to 35 percent
Vibration frequency: 116.6Hz
Engine specifications:
Type: Air-cooled, single cylinder, diesel engine
Manufacturer: Yanmar
Displacement: 211cm3Max. rated power: 3.5kW
Operating speed: 3600rpm
Fuel consumption: 0.96 l/h
Fuel tank capacity: 2.5 L
Power transmission: Power transmission from engine via centrifugal clutch and V-belt onto exciter which transmits centrifugal force onto baseplate.
