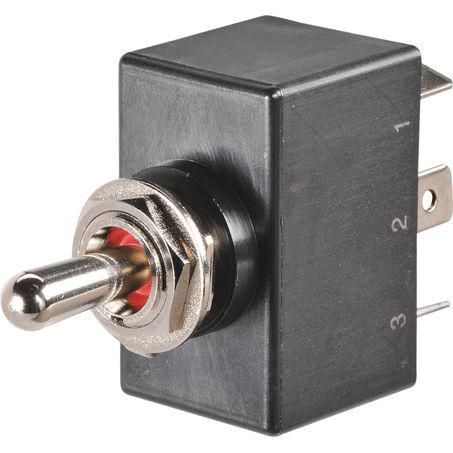

Waterproof Toggle Switch DPDT
SKU:60294BL
RRP $88.44
$66.66
SAVE $21.78 (25%)
Not Available In Store
Calculate Shipping
Description Narva Waterproof Heavy Duty Toggle Switch DPDT (Contacts Rated 25A @ 12V)
Warranty: One Year
Number of Terminals: 6
Power Rating [Amp]: 25A @ 12V
Switch Action: On - Off - On - DPDT
Voltage: 12 or 24
Lamp Colour/s: Not Applicable
Number of Poles: 2
Number of Positions: 3
Switch Type: Toggle
Switch Illumination: Non Illuminated
Weight: 0.05kg
Features:
DPDT
Push on terminals
Amperage rating 25A at 12V, 15A at 24V
-40C to +85C
Fully sealed with epoxy resin (IP67)
Integrated O-Ring seal
Comprises: Fully sealed with epoxy resin (IP67),Integrated O-Ring seal
Mounting opening 12mm diameter
Warranty: One Year
Number of Terminals: 6
Power Rating [Amp]: 25A @ 12V
Switch Action: On - Off - On - DPDT
Voltage: 12 or 24
Lamp Colour/s: Not Applicable
Number of Poles: 2
Number of Positions: 3
Switch Type: Toggle
Switch Illumination: Non Illuminated
Weight: 0.05kg
Features:
DPDT
Push on terminals
Amperage rating 25A at 12V, 15A at 24V
-40C to +85C
Fully sealed with epoxy resin (IP67)
Integrated O-Ring seal
Comprises: Fully sealed with epoxy resin (IP67),Integrated O-Ring seal
Mounting opening 12mm diameter
(60294BL)
| SKU | 60294BL |
| Barcode # | 9310754993024 |
| Brand | Narva |
| Shipping Weight | 0.2000kg |
| Shipping Width | 80.000m |
| Shipping Height | 60.000m |
| Shipping Length | 120.000m |
