RRP $1,823.58
$1,160.45
SAVE $663.13 (36%)
Not Available In Store

Calculate Shipping

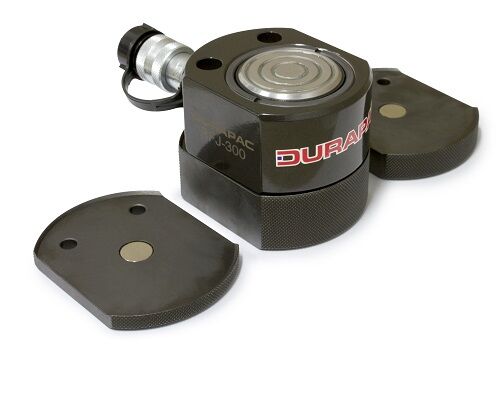

Cylinder capacity ton* : 5
Cylinder capacity kN: 45
Stroke (mm): 6
Cylinder Effective Area (cm2): 6.5
Oil capcity (cm3): 4
Collapsed height (mm): 32
Extended height (mm): 38
Outside diameter (mm): 58x41
Cylinder Bore diameter(mm): 28.7
Piston Rod diameter (mm): 25.4
Base to Advance Port (mm): 16
Load Cap Protrusion from Cylinder Body (mm): 1

(RFJ50)

SKU RFJ50
Barcode # 9310755037444
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.060m
Shipping Length 0.150m
