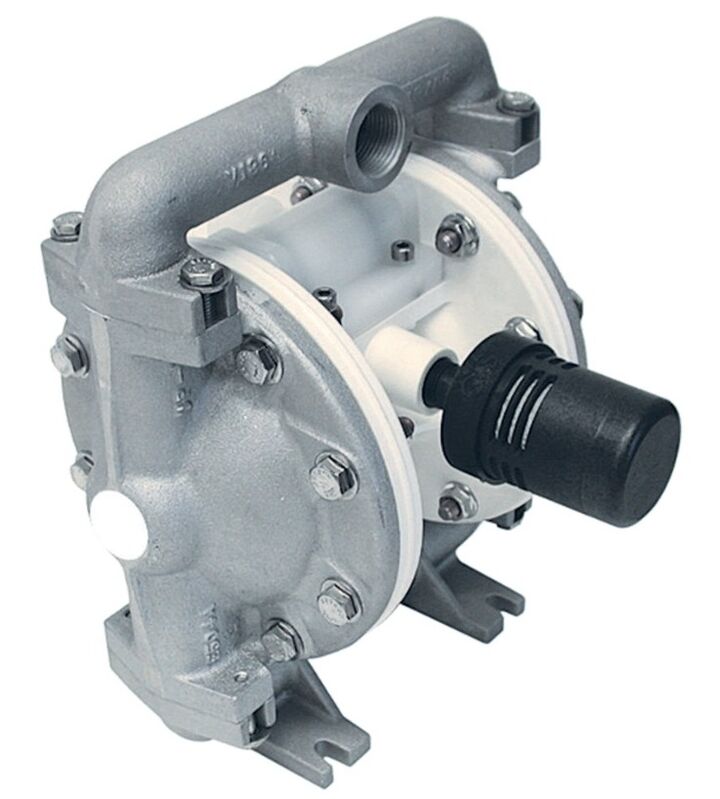

Air Operated Diaphragm Pump 3/4' "OBSELETE" - DDP19
SKU:DDP19
RRP $2,296.69
$1,764.79
SAVE $531.90 (23%)
Not Available In Store
Calculate Shipping
Technical Specifications:
Maximum Air Pressure: 690kPa (100psi)
Inlet / Outlet Ports: 3/4" NPT(F)
Air Inlet Size/Type: 3/8" NPT(F)
Maximum Flow Rate: 45 L/min (viscosity dependant)
Suction Lift: 3.9m (dry) / 6.7m (wet)
Maximum Solids Handling: 1.6mm (0.0625")
Fluid temperature range: -23ºC - 88ºC
Maximum noise level: 84 dB(A)
Fluid Compatibility: Oils (new & used), Engine Coolants RTU (new & used), oily water, Diesel,br>Wetted Components: Aluminium/Polypropylene (body), Aluminium (valve seats), Buna N (diaphragms), Acetal (check valves)
Maximum Air Pressure: 690kPa (100psi)
Inlet / Outlet Ports: 3/4" NPT(F)
Air Inlet Size/Type: 3/8" NPT(F)
Maximum Flow Rate: 45 L/min (viscosity dependant)
Suction Lift: 3.9m (dry) / 6.7m (wet)
Maximum Solids Handling: 1.6mm (0.0625")
Fluid temperature range: -23ºC - 88ºC
Maximum noise level: 84 dB(A)
Fluid Compatibility: Oils (new & used), Engine Coolants RTU (new & used), oily water, Diesel,br>Wetted Components: Aluminium/Polypropylene (body), Aluminium (valve seats), Buna N (diaphragms), Acetal (check valves)
(DDP19)
| SKU | DDP19 |
| Barcode # | 9310755023171 |
| Shipping Weight | 80.0000kg |
| Shipping Width | 0.700m |
| Shipping Height | 0.600m |
| Shipping Length | 0.800m |
