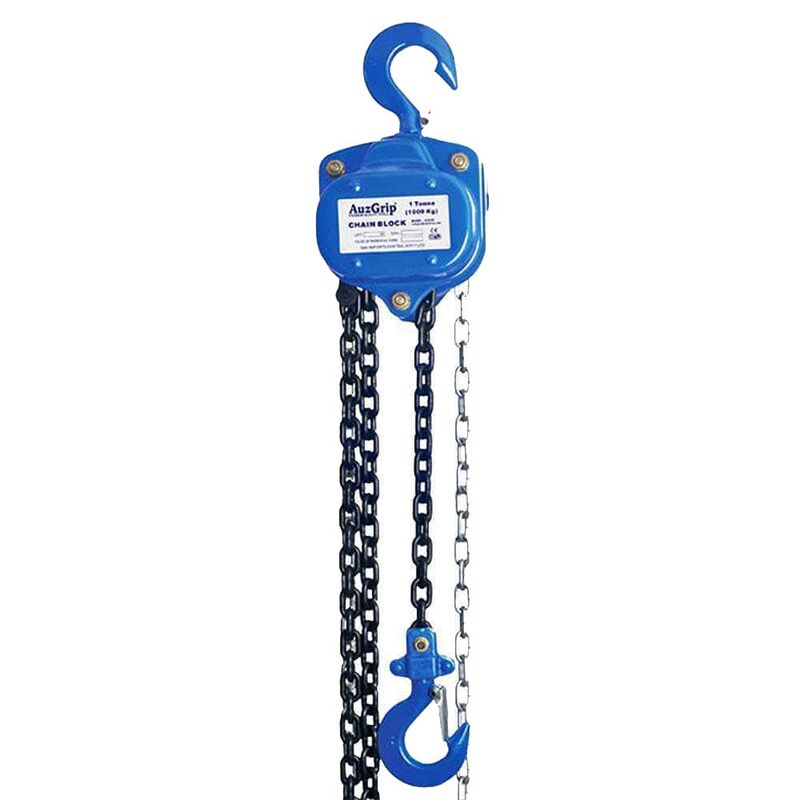

Chain Block 1000Kg 3 Metre

APPLICATION:
To safely facilitate the lifting of heavy component objects or materials. Designed to meet and exceed the needs of all industrial, mining, rigging, automotive and marine lifting applications.
FEATURES
Manufactured with industrial strength, impact resistant, hardened steel frame and gear case
Unique 3 spur gear efficiency reduces required operator effort by 25percent
Double guide rollers and pawl enhance safety, performance and reliability
Asbestos free friction disc
Fitted with industrial duty caged needle roller bearings
Rated grade 89 alloy steel load chain compliance to ASO3077 and EN818-7 standards
Load rated, dropped forged, wide throat hooks with cast safety latches and bottom hook assembly 360° rotatable with thrust bearing
Powder coated finish for corrosion resistance
Can be close coupled to suitable girder trolley assembly (Grip part no 18145 suitable)
Complies to AS/NZ 1418-2 standard and also meets all pertinent world standards
including European EN13157 - Proof tested 1.5 x W.L.L (working load limit )
Individual, serial numbered test certificate supplied
SPECIFICATIONS:
Rated capacity: 1 tonne (1000kg)
Standard lift: 3 meters
Effort required to lift rated load: 250 newtons
Packaged Dimensions (L x W x H ):250 x 190 x 190mm
Weight(nett): 12kg
