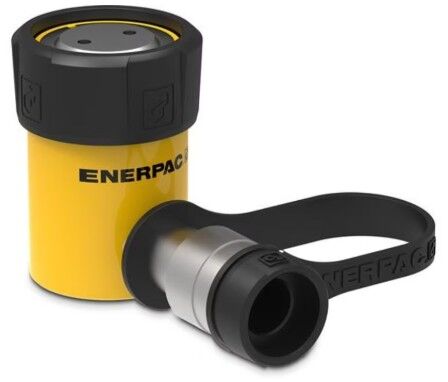

ENERPAC RC-101 General Purpose Hydraulic Cylinder, 11.2 Ton, 1 Inch Stroke Length

RRP $5,362.50

$3,412.53

SAVE $1,949.97 (36%)

Not Available In Store

Calculate Shipping

Maximum Operating Pressure: 700 bar
Capacity Class: 10 tonnage
Maximum Cylinder Capacity Advance: 101 kN
Stroke: 26 mm
Collapsed Height A: 90 mm
Extended Height B: 116 mm
Return Type: Single-Acting, Spring Return
Plunger Type: Solid
Material: Steel
Cylinder Effective Area Advance: 14,4 cm2
Oil Capacity Advance: 38 cm3
Surface Treatment: Paint
Coupler: CR400 Coupler
Weight: 1,8 kg

(RC-101)

SKU	RC-101
Barcode #	9310755055172
Shipping Weight	1.8000kg
Shipping Width	0.150m
Shipping Height	0.100m
Shipping Length	0.150m
