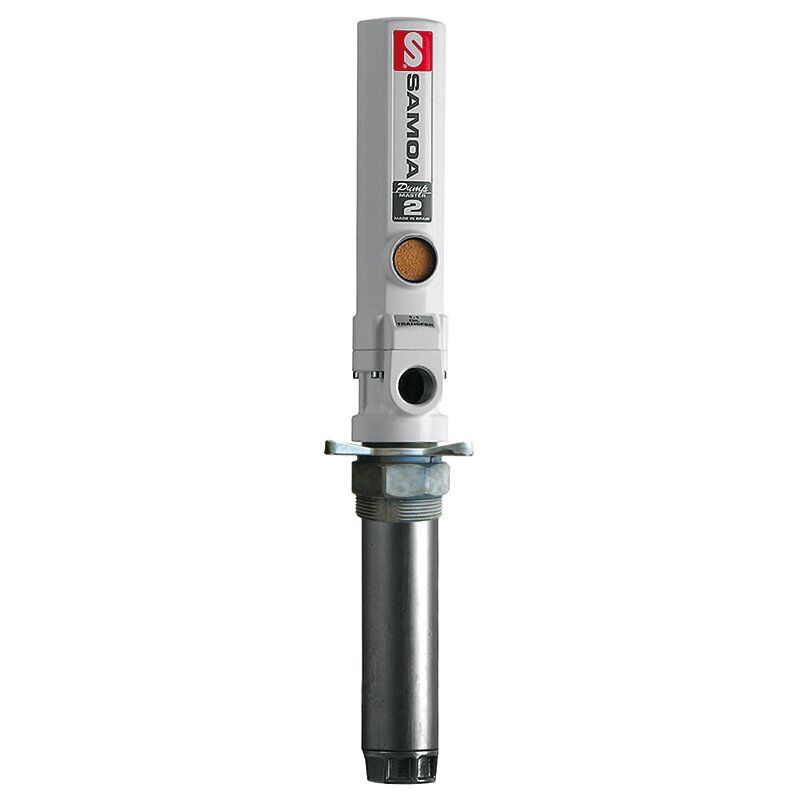

Samoa Air Operated Bulk Tank Oil Transfer Pump 35L/Min. - 353120
SKU:353120
RRP $1,742.40
$1,174.42
SAVE $567.98 (33%)
Not Available In Store
Calculate Shipping
Features
Pressure ratio of 3:1
Suitable for transferring oil, ATF and coolant
Maximum free flow delivery of 35L/min
Operating air pressure range of 40-140psi (3-10bar)
Maximum fluid outlet pressure of 420psi (30bar)
Manufactured in Spain by Samoa
Air inlet of 1/4" BSP(f)
Fluid outlet of 1/2" BSP(f)
Air consumption of 500NL/min (17.6 cfm) at 7bar
Pump tube height of 200mm
Total height of 495mm
Weight of 2kg
Air motor diameter/stroke of 51mm/75mm
Noise level of 80dB
Materials (wetted/seals) of Aluminium, Steel, Zinc, NBR, PTFE
Cycle rate (at 10L/min flow) of 175 cycles/min
Wall-mounted with 2" BSP bung
Pressure ratio of 3:1
Suitable for transferring oil, ATF and coolant
Maximum free flow delivery of 35L/min
Operating air pressure range of 40-140psi (3-10bar)
Maximum fluid outlet pressure of 420psi (30bar)
Manufactured in Spain by Samoa
Air inlet of 1/4" BSP(f)
Fluid outlet of 1/2" BSP(f)
Air consumption of 500NL/min (17.6 cfm) at 7bar
Pump tube height of 200mm
Total height of 495mm
Weight of 2kg
Air motor diameter/stroke of 51mm/75mm
Noise level of 80dB
Materials (wetted/seals) of Aluminium, Steel, Zinc, NBR, PTFE
Cycle rate (at 10L/min flow) of 175 cycles/min
Wall-mounted with 2" BSP bung
(353120)
| SKU | 353120 |
| Barcode # | 9310755083724 |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.100m |
| Shipping Length | 0.400m |
