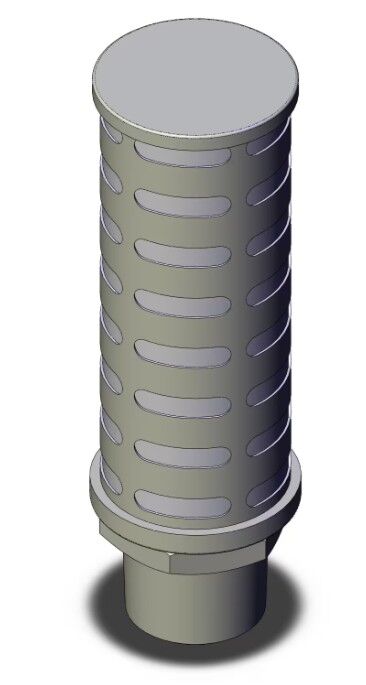

Silencer 2" AN900-20 - AN900-20

Series AN silencers offer various styles and low backpressure in a compact, easy mounting design. The noise reduction has been improved to 30 dB(A) and the case is UL94-V0 grade, flame resistant material. Series AN is available with M, R or NPT threads.
Fluid: compressed air
Noise reduction: 25-35 dB(A) or more
Maximum operating pressure: 1.0MPa
Effective area mm 2 (Cv): AN*00 35-960 (1.9-53);
AN*02 35-90 (1.9-5.0); AN*03 10-60 (0.6-3.3)
Ambient and fluid temperature: 5 - 60 C
