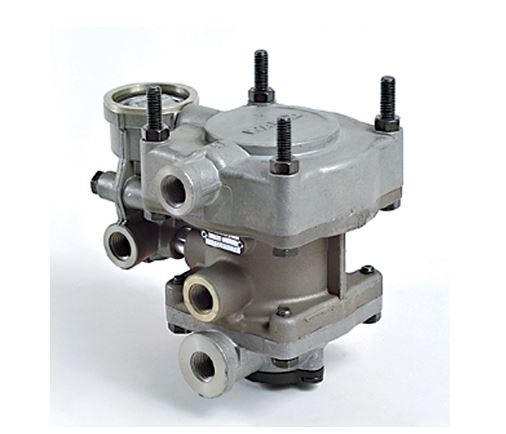

Trailer Control Valve
SKU:9730025210
Brand: WABCO Original
Part type: Premium original quality
Technical Specification: OE specification
Product Category: Device
Distance between bolts: 85.0 x 85.0 mm
Exhaust: Flap
Max. operating pressure: 8.0 bar
Mounting: 4x M8
Multi Nominal diameter (From Port 1 to x): 8.0 / 2.0 mm
Port thread : 11M16 x 1.5
Port thread : 12M16 x 1.5
Port thread : 22M16 x 1.5
Port thread : 41M16 x 1.5
Port thread : 42M16 x 1.5
Port thread : 43M16 x 1.5
Port threads: M16 x 1.5
Predominance: 0.20 bar
Switch pressure: 2.5 bar
Temperature range: -40 degC to +80 degC
Calculated Volume (dm3): 3.7522
Size (mm x mm x mm): 164 x 167 x 137
UPC193133450078
Weight (kg): 2.177
Weight (lb): 4.7995
Part type: Premium original quality
Technical Specification: OE specification
Product Category: Device
Distance between bolts: 85.0 x 85.0 mm
Exhaust: Flap
Max. operating pressure: 8.0 bar
Mounting: 4x M8
Multi Nominal diameter (From Port 1 to x): 8.0 / 2.0 mm
Port thread : 11M16 x 1.5
Port thread : 12M16 x 1.5
Port thread : 22M16 x 1.5
Port thread : 41M16 x 1.5
Port thread : 42M16 x 1.5
Port thread : 43M16 x 1.5
Port threads: M16 x 1.5
Predominance: 0.20 bar
Switch pressure: 2.5 bar
Temperature range: -40 degC to +80 degC
Calculated Volume (dm3): 3.7522
Size (mm x mm x mm): 164 x 167 x 137
UPC193133450078
Weight (kg): 2.177
Weight (lb): 4.7995
(9730025210)
SKU | 9730025210 |
Barcode # | 9.31075E+12 |
Brand | Wabco |
Shipping Weight | 3.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
